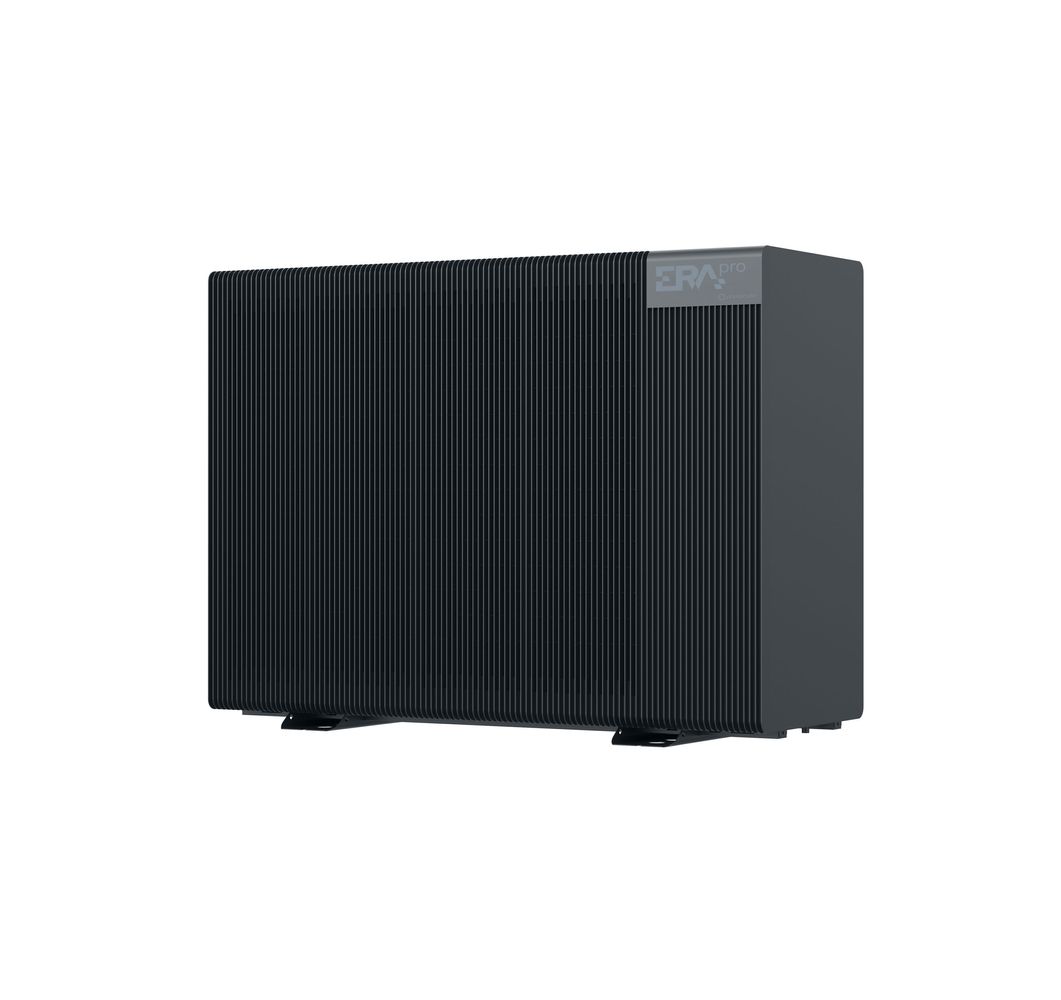

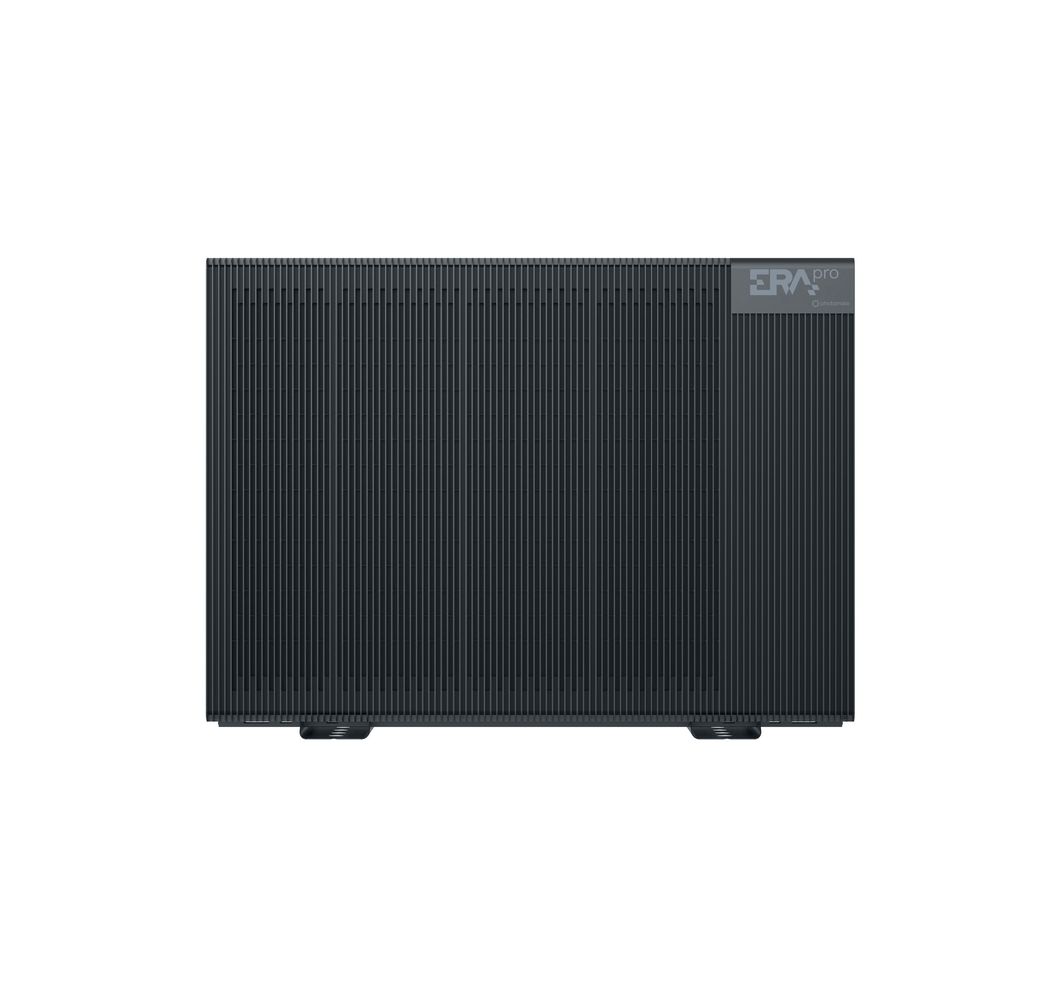

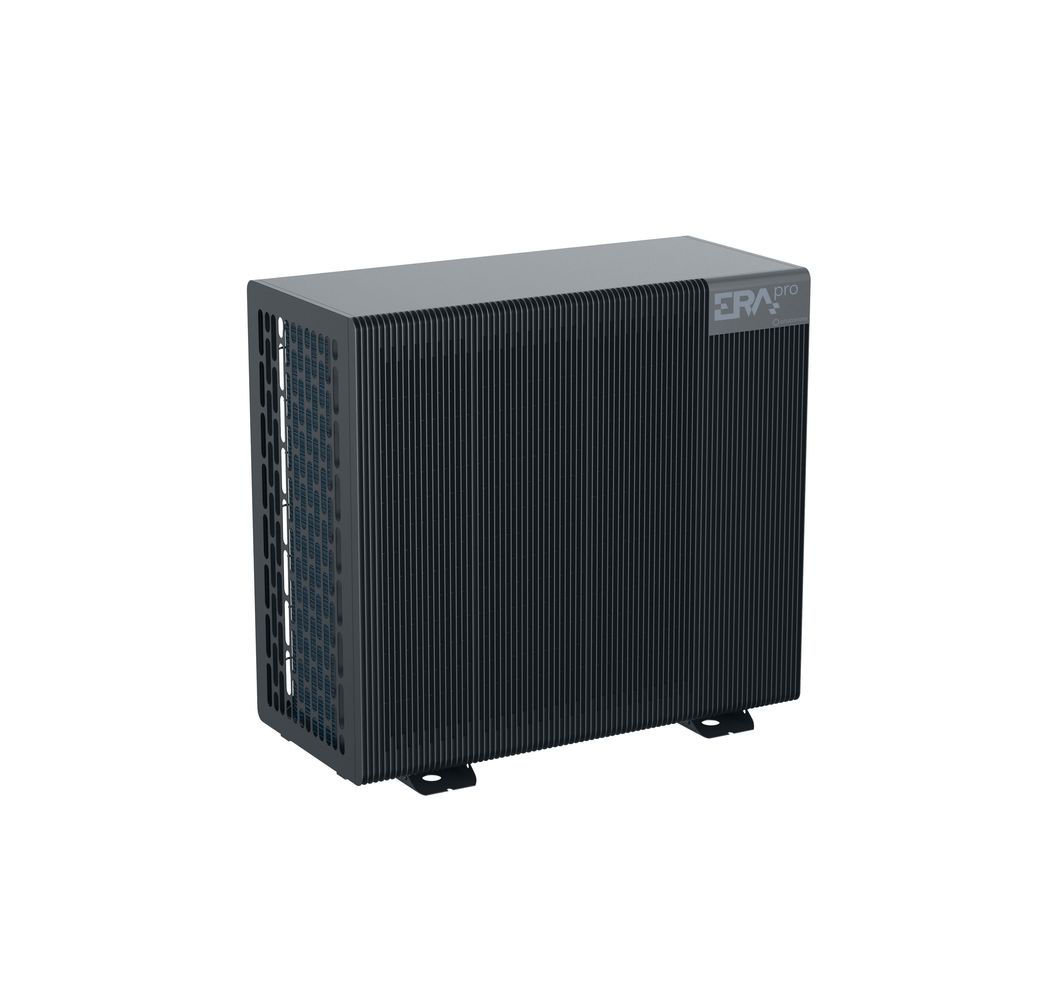

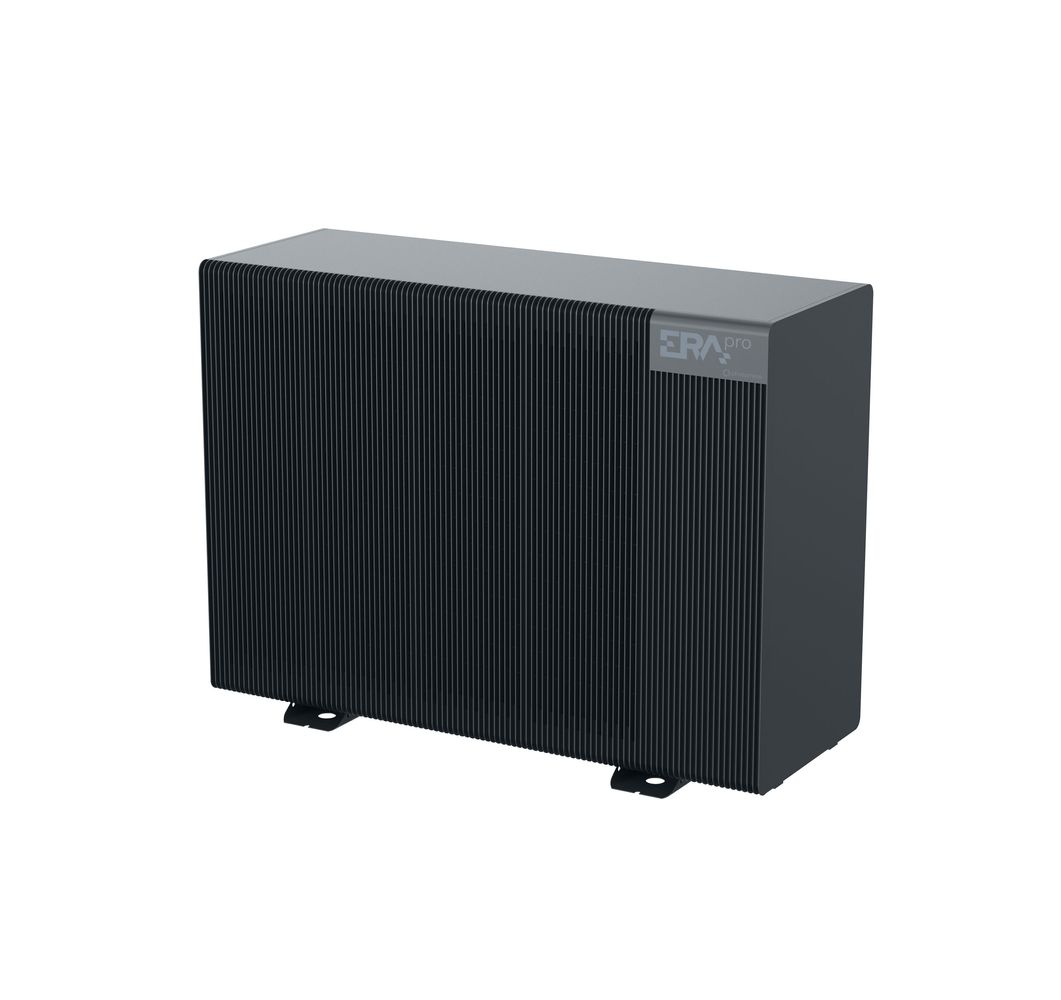

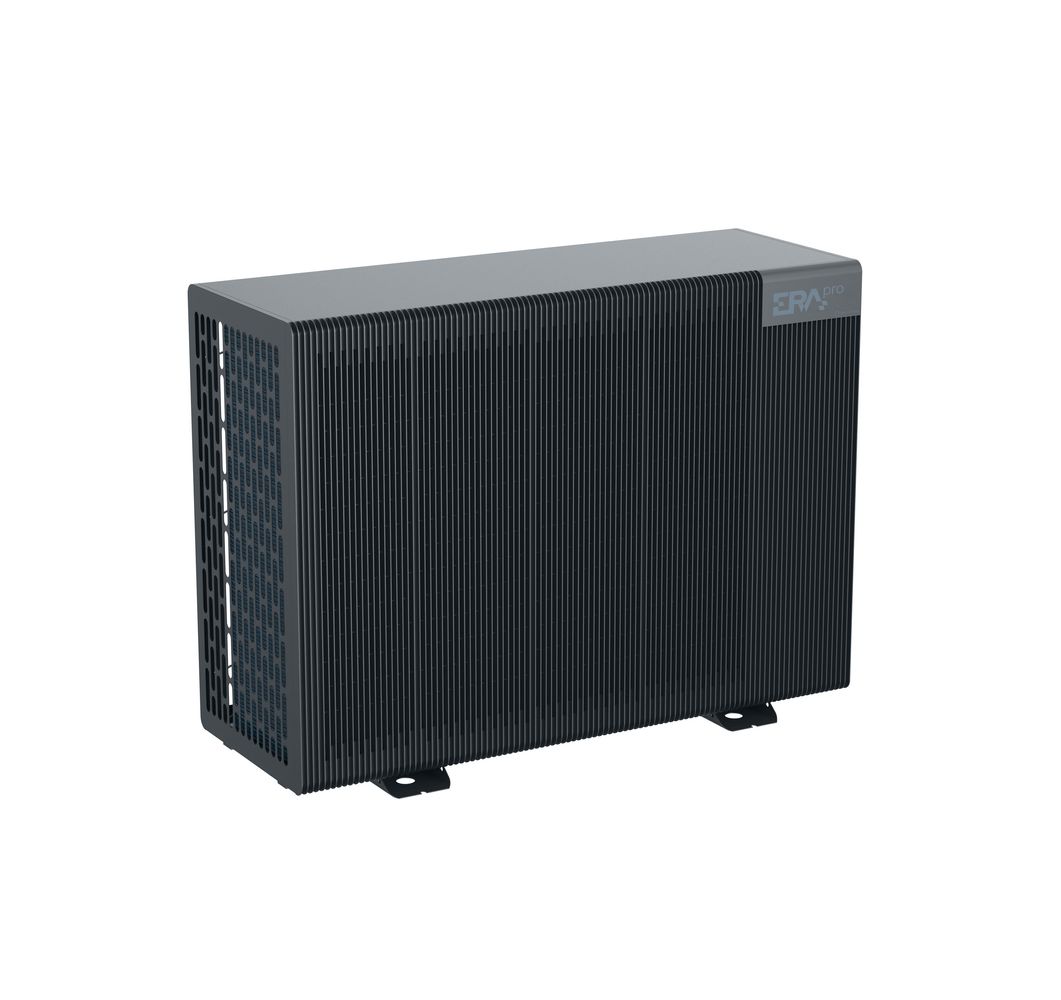

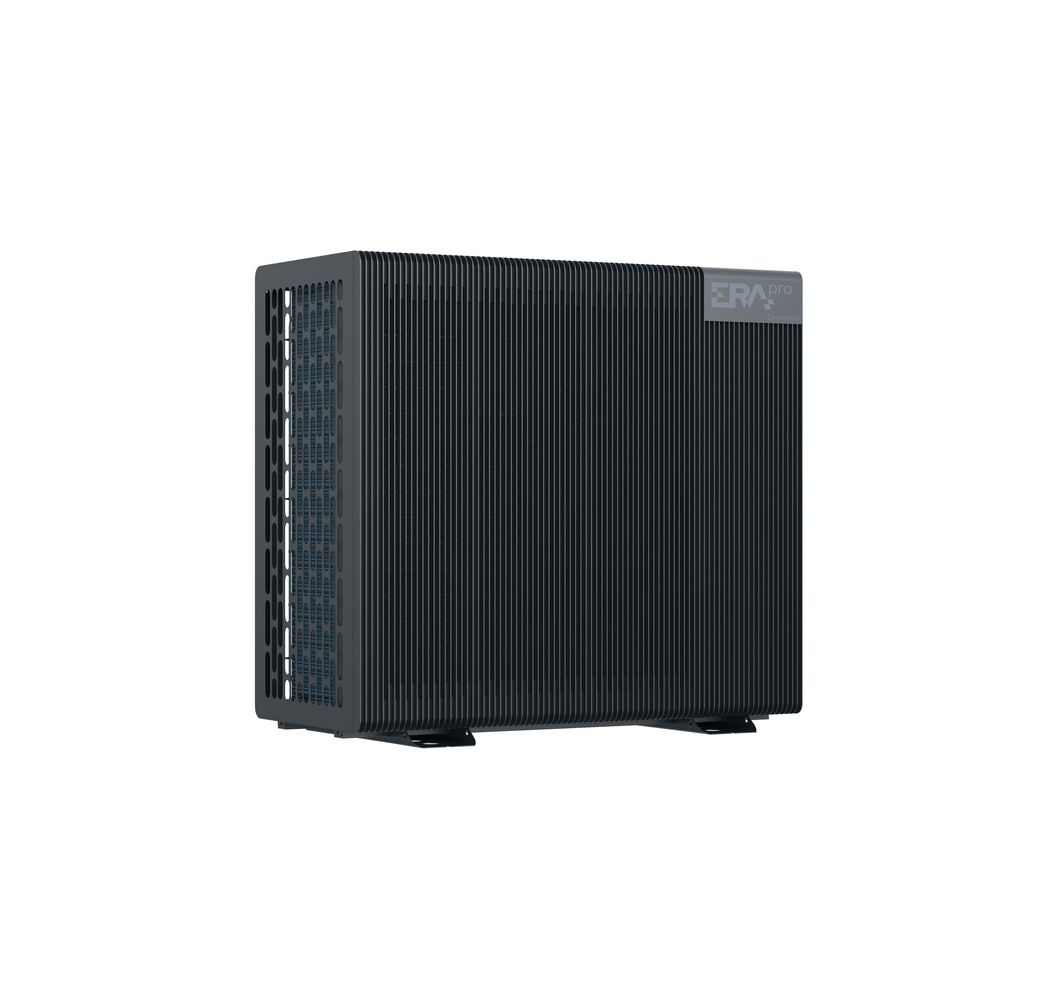

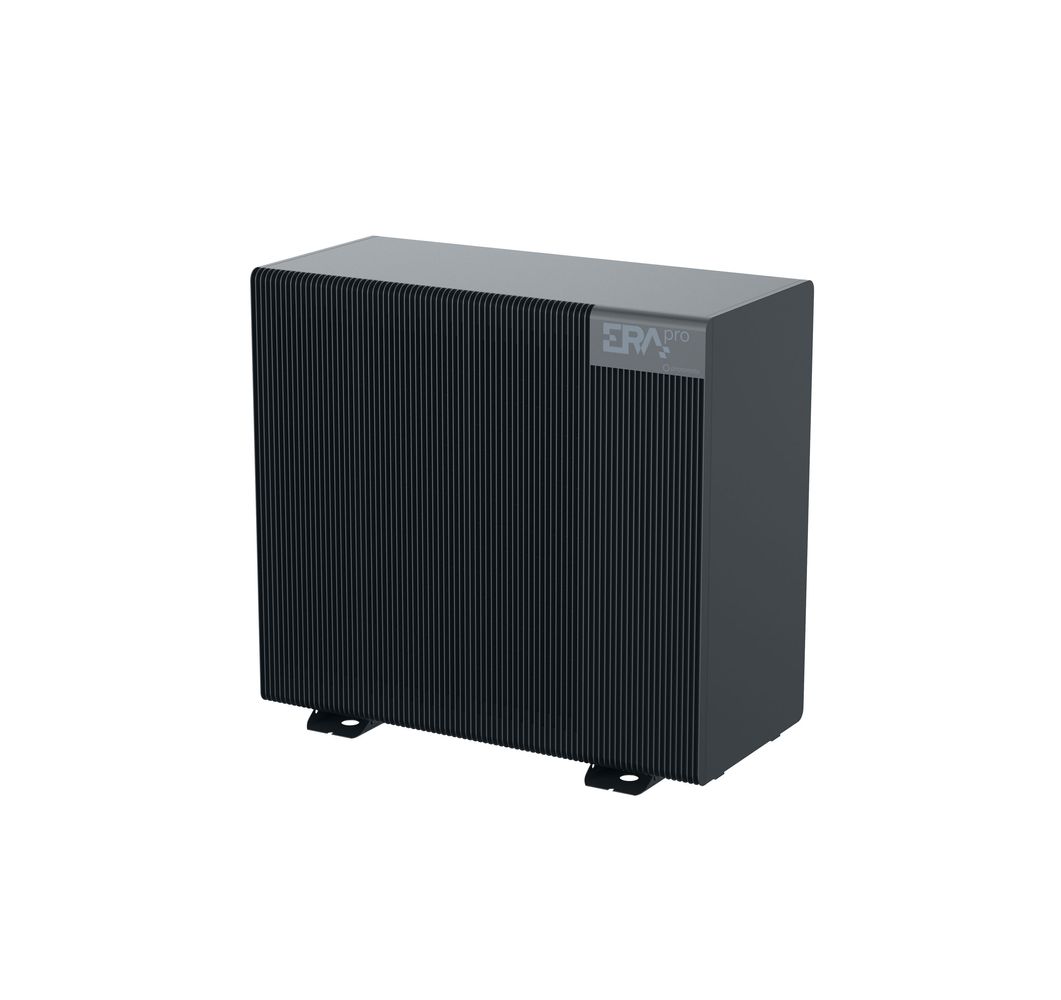

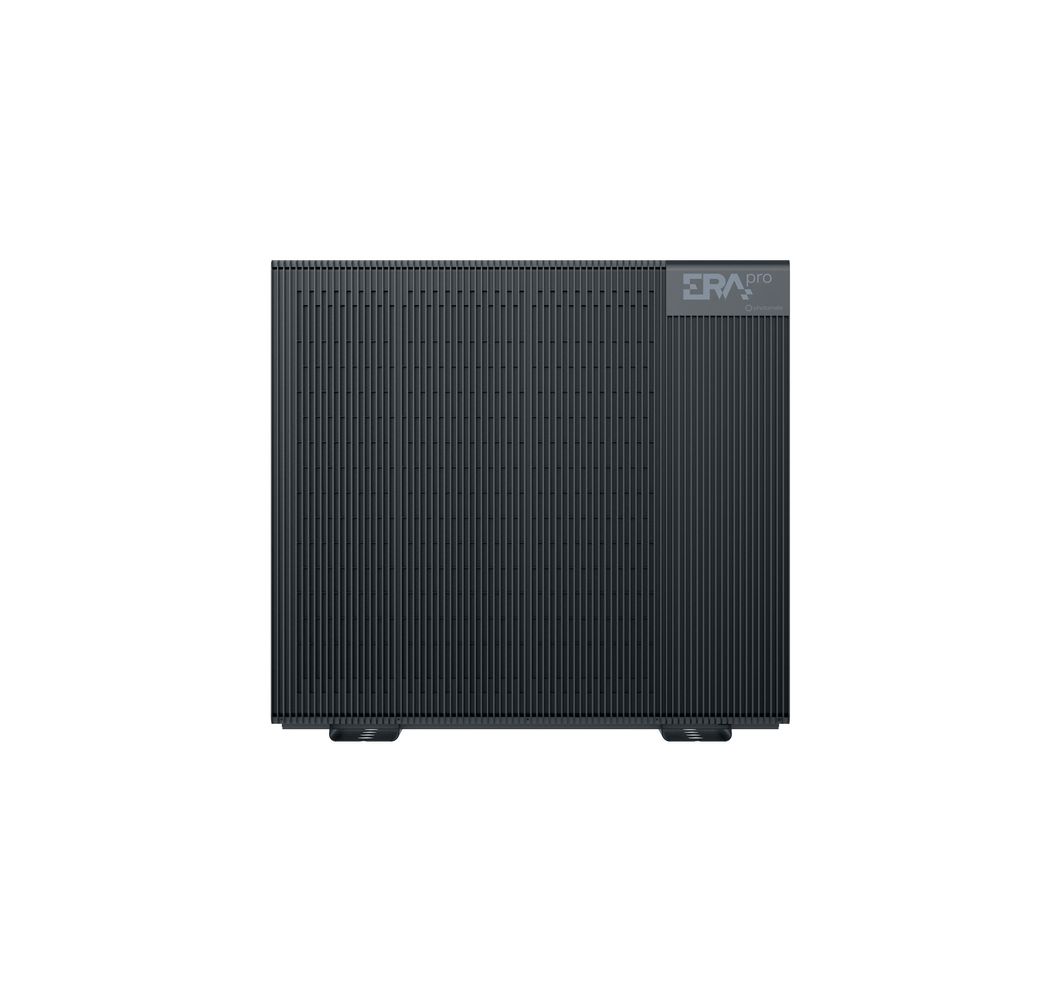

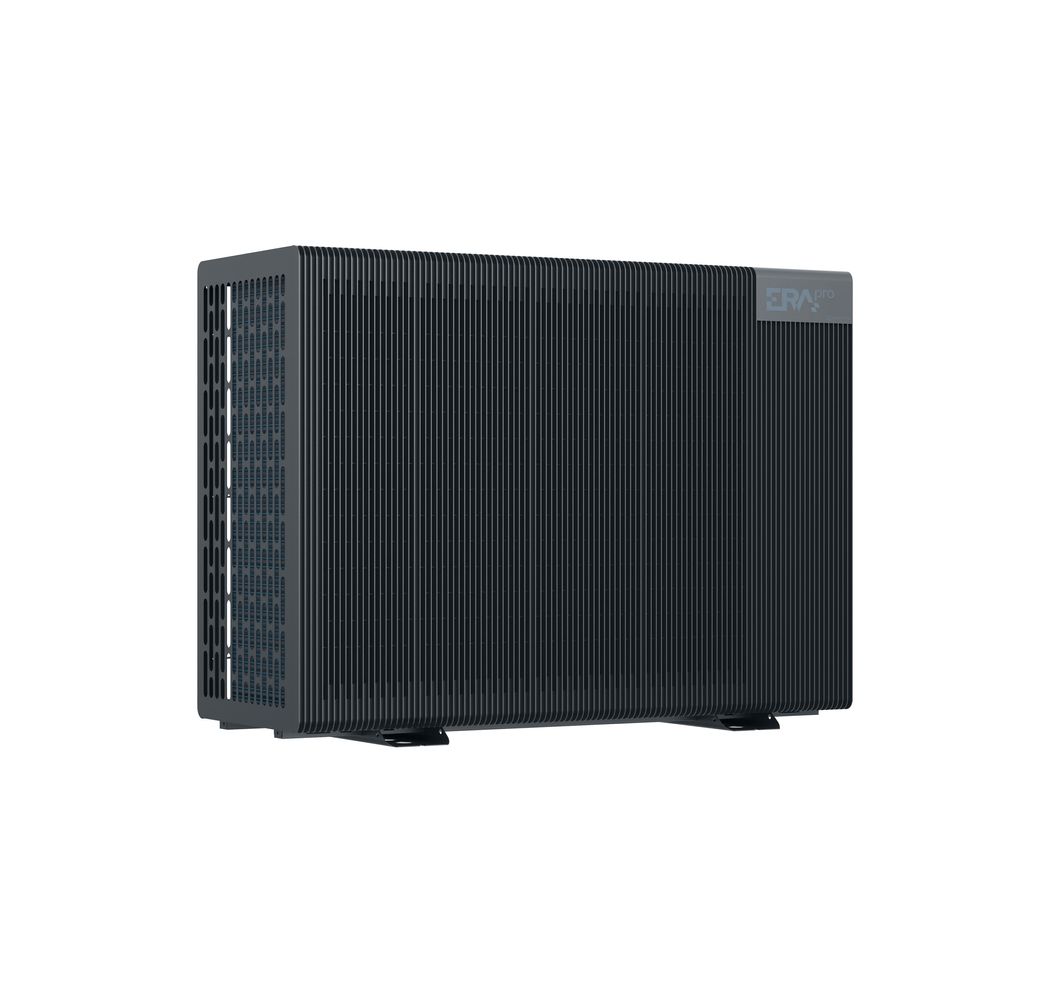

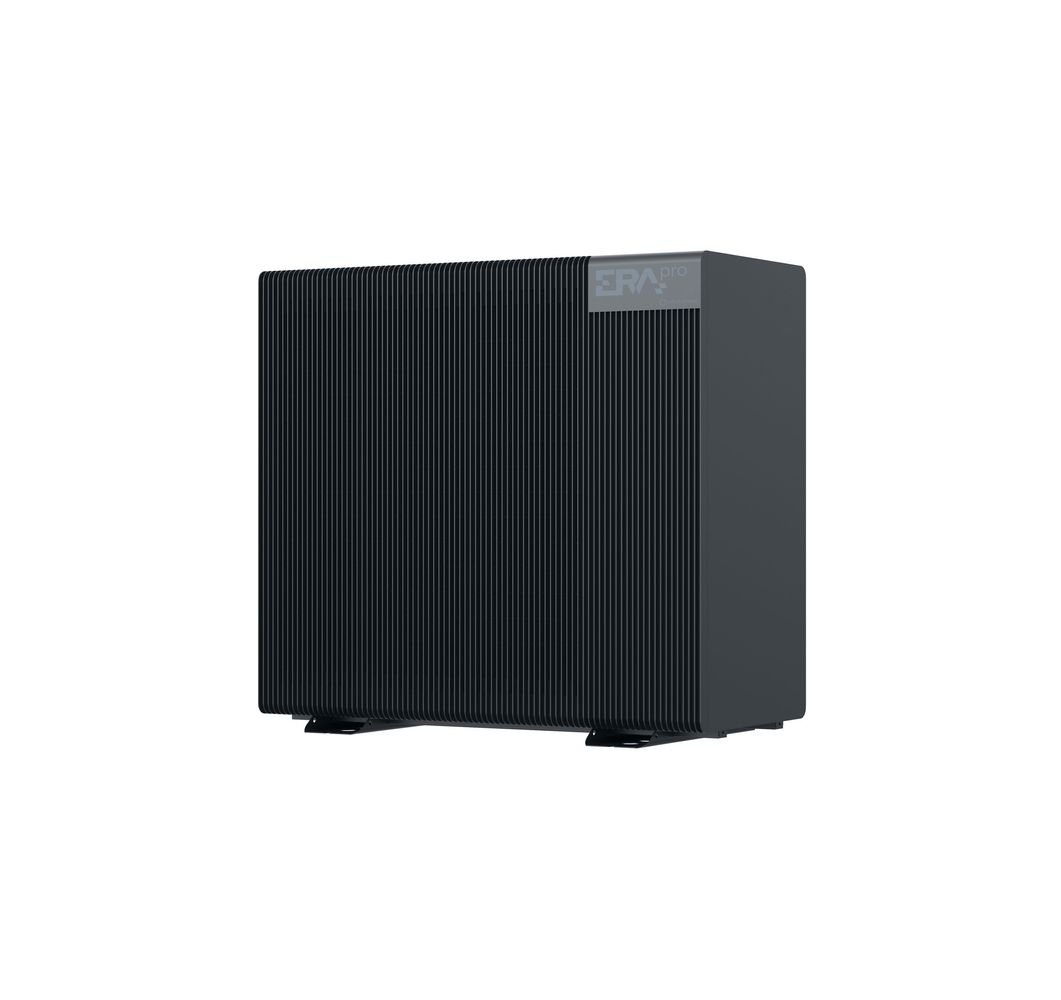

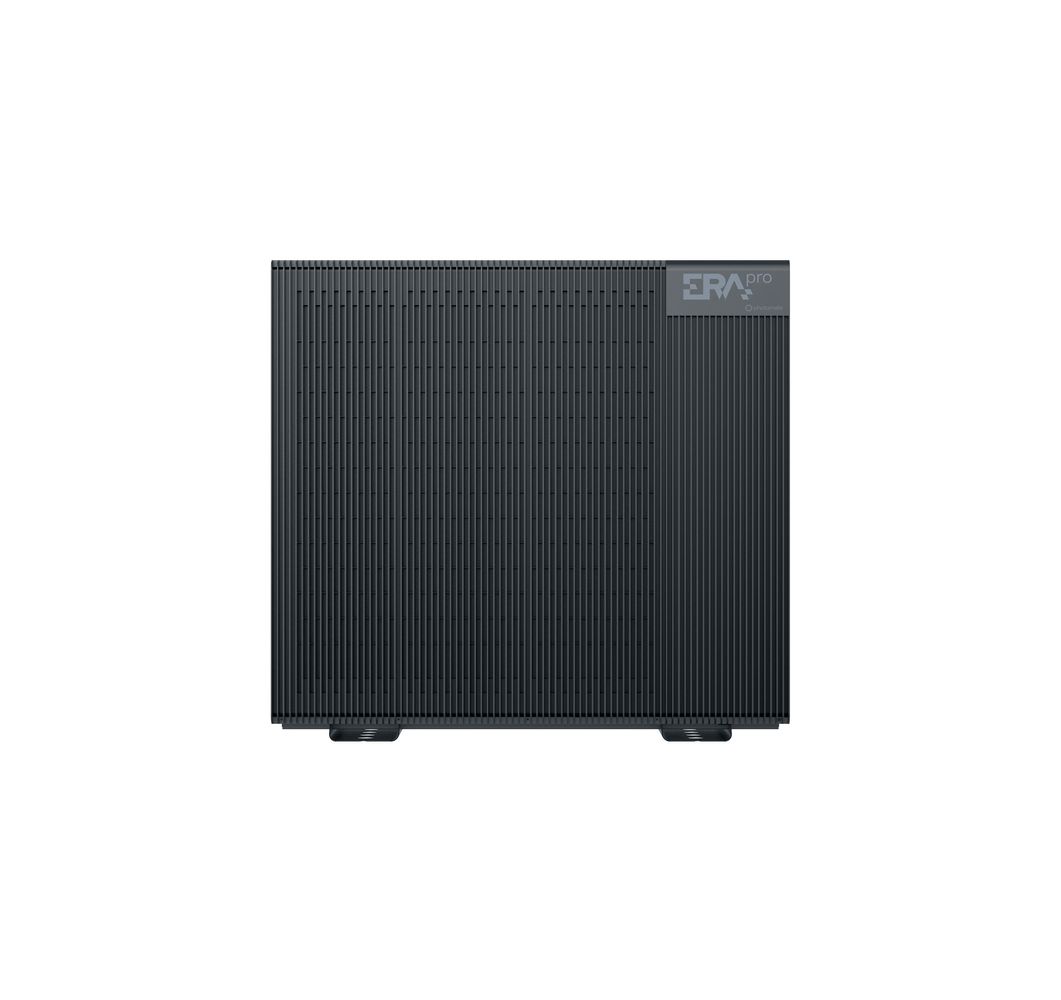

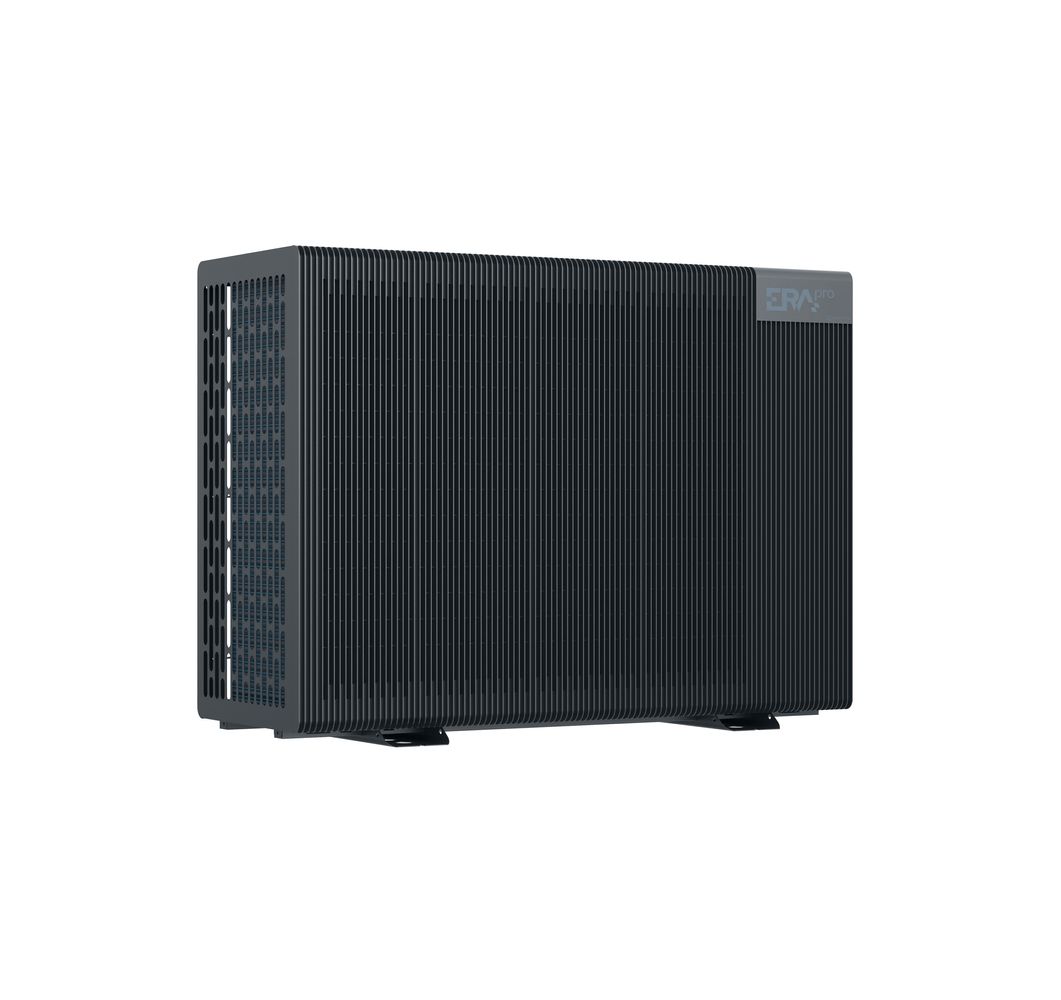

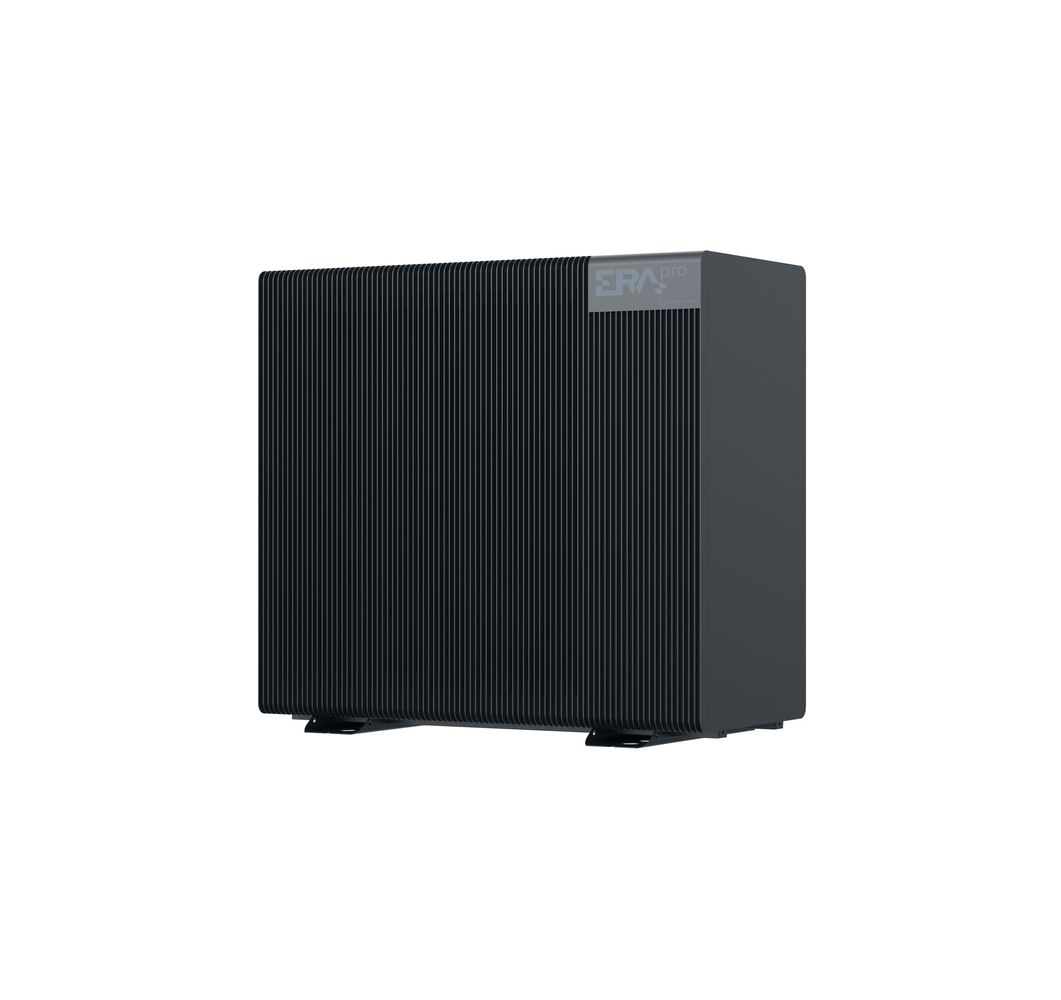

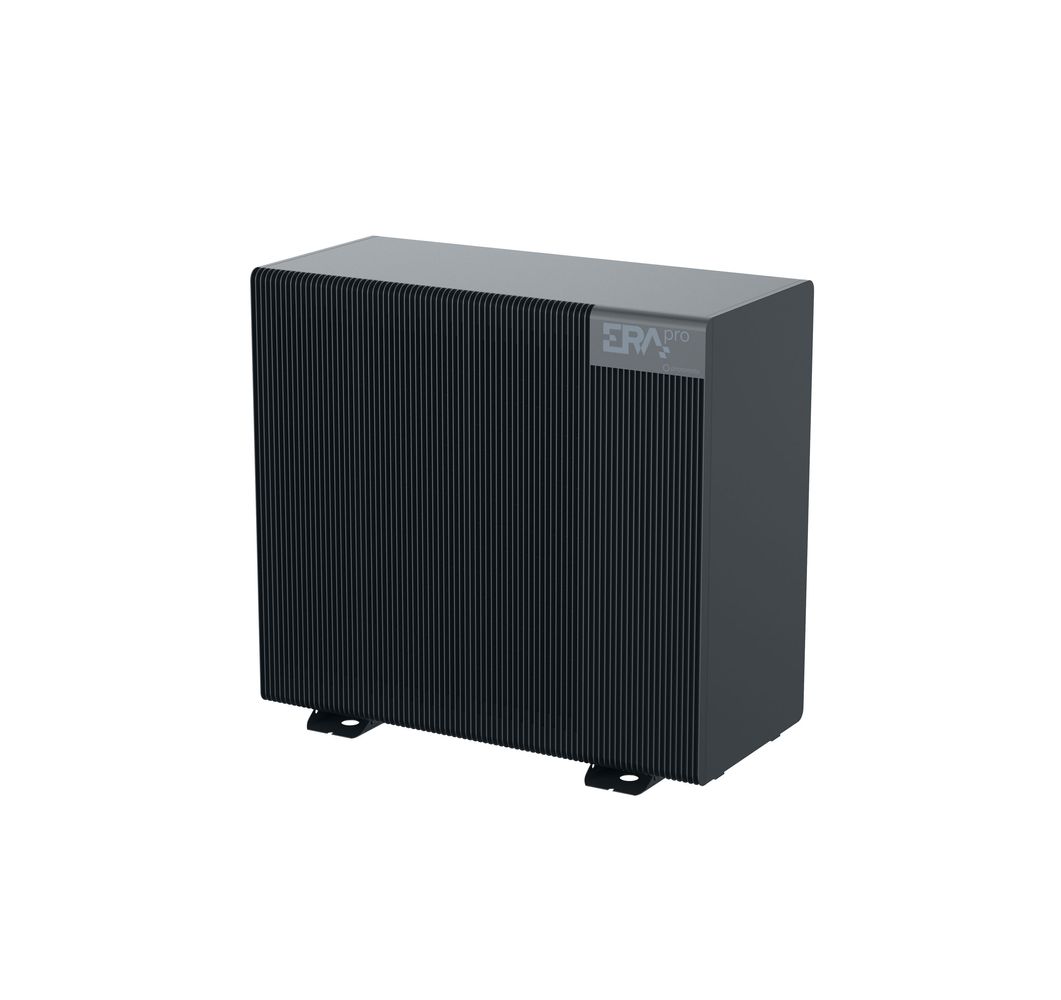

Premium heat pump for new buildings and renovations
- Monoblock heat pump 6 / 9 kW (230V) and 13 / 16 kW (400V)
- Frequency inverter
- Heating, cooling and water heating
- Refrigerant R290
- SCOP up to 5.08
- Output temperature up to 75°C
- Operating conditions heating / water heating -25 to 38°C
- Sound pressure according to EN 12102 is 38 dB (A) at 1m from the unit for EraPRO 6kw
- Robust construction, heated condensate pan
- Intelligent functions for less frequent and fast defrosting
- Very easy electrical connection and quick installation
- Cascade of up to 8 HP – max. output 128kW
Integrated components:
- WILO speed-controlled circulation pump
- Mitsubishi Electric twin-rotary compressor
- Gas separator and magnetic filter
- Safety valve incl. drain hose
- Refrigerant leak detector with alarm function
- Flow meter
Technical specification
| Model | EraPRO 6 kw | EraPRO 9 kw | EraPRO 13 kw | EraPRO 16 kw |
| Energy efficiency at 35°C / 55°C | A+++ / A++ | |||
| SCOP EN 14825 Average climate, 35/55°C | 5,08 / 3,66 | 5,05 / 3,73 | 5,05 / 3,80 | 5,07 / 3,69 |
| Seasonal heating efficiency 35°C, average climate | 200,3 | 199,1 | 199,0 | 199,8 |
| Power A7/W35 (kW) | 6 | 9 | 13 | 16 |
| Prated EN 14825 (35/55°C) | 4,8 | 7,0 | 9,8 | 12,8 |
| Maximum output temperature (°C) | 75 | |||
| Heating operating conditions (°C) | -25 ~ +38 | |||
| Cooling operating conditions (°C) | +15 ~ +43 | |||
| Sound power dB(A)* | 52 | 56 | 58 | 60 |
| Sound pressure 1m dB(A) * | 38 | 42 | 44 | 46 |
| Sound pressure 3m dB(A)* | 26 | 30 | 32 | 34 |
| Power supply (V) | 230 | 400 | ||
| Circuit breaker, motor characteristic (A) | 16 | 20 (16**) | 10 | 10 |
| Refrigerant | R290 | |||
| Refrigerant amount (kg) | 0,75 | 0,90 | 1,05 | 1,28 |
| Dimensions (mm) height / width / depth | 1021 / 1102 / 575 | 1021 / 1377 / 575 | ||
| Weight without packaging (kg) | 130 | 135 | 190 | 195 |
| Wifi connection | Yes | |||
* according to EN 12012 standard
** when changing settings
EraPRO heat pump control unit
Description:
- Intuitive touch control, 7" display
- Wifi internet connection
- MODBUS RTU
- Quick setting of all parameters
- Online remote management - possibility of parameter reset
- Communication cable with connectors always included in delivery - communication cannot be connected incorrectly
- Outdoor temperature is uploaded from the outdoor unit
Control and management:
- 1x direct circuit
- 1x mixed circuit + circulation pump
- Water heating
- Hot water circulation
- Heating / hot water changeover valve
- Heating / cooling changeover valve
- 1x thermal solar system
- Heating circuit circulation pump
- Bivalent source
Indoor units for EraPRO heat pump
| Model | CU 1 | HU 9 | DHWU 9 |
| Water heating control | Yes | ||
| Heating | 2 circuits | ||
| Cooling | 1 circuit | ||
| Auxiliary source control | Yes | ||
| Integrated auxiliary power supply | No | Yes / 9kW | |
| Power supply | 1x230 V | 3x400 V | |
| Circuit breaker | 1x10 A/B | 3 x 16 A/B | |
| Connection dimensions | - | 1 ¼“ external thread | |
| Dimensions mm (w/d/h) | 390 / 100 / 420 | 418 / 310 / 750 | 640 / 750 / 1950 |
| Weight (kg) | 7,5 | 35 | 125 |
DHWU 9
- Optimal option for new buildings, required installation area less than 1 m2
- Quick and easy installation – top connection of all pipes
- Min. door width for installation is 700 mm
- Power supply 3 x 400 V
- Circuit breaker 3 x 16 A/B
- Stainless steel hot water tank 200 liters
- Instantaneous electric boiler 9 kW
- Hot water expansion vessel 19 liters
- Heating expansion vessel 8 liters
- Hot water circulation pump
- Magnesium anode (extends the life of the stainless steel tank)
- Automatic air vent
- Three-way valve
- Pressure gauge
- Insulated piping and all components against condensation
- Touch screen 7“
- WiFi internet connection
- MODBUS RS485, RTU protocol
- Draining of tank and exchanger
HU 9
- Option for new buildings and renovations without a requirement for hot water or with a requirement of more than 200 liters of hot water
- Easy installation
- Compact dimensions
- Power supply 3 x400 V
- Circuit breaker 3 x 16 A/B
- Instantaneous electric boiler 9 kW
- Expansion vessel for heating 8 liters
- Automatic air vent valve
- Three-way valve
- Insulated pipes and all components against condensation
- Modbus RS485, RTU protocol
- Touch screen 7“
- Wifi internet connection
CU 1
- Option for new buildings and renovations for variable installations with additional heat sources, storage tank and hot water tank
- A large number of connection combinations can be created
- Solar thermal system control
- Power supply 1 x 230 V
- Circuit breaker 1 x 10 A/B
- Touch screen 7“
- WiFi internet connection
- MODBUS RS485, RTU protocol
- Terminal board for connecting all necessary components
- Suspension bracket, dowels and screws
- Combination with other heat sources and existing components
- Wall installation
